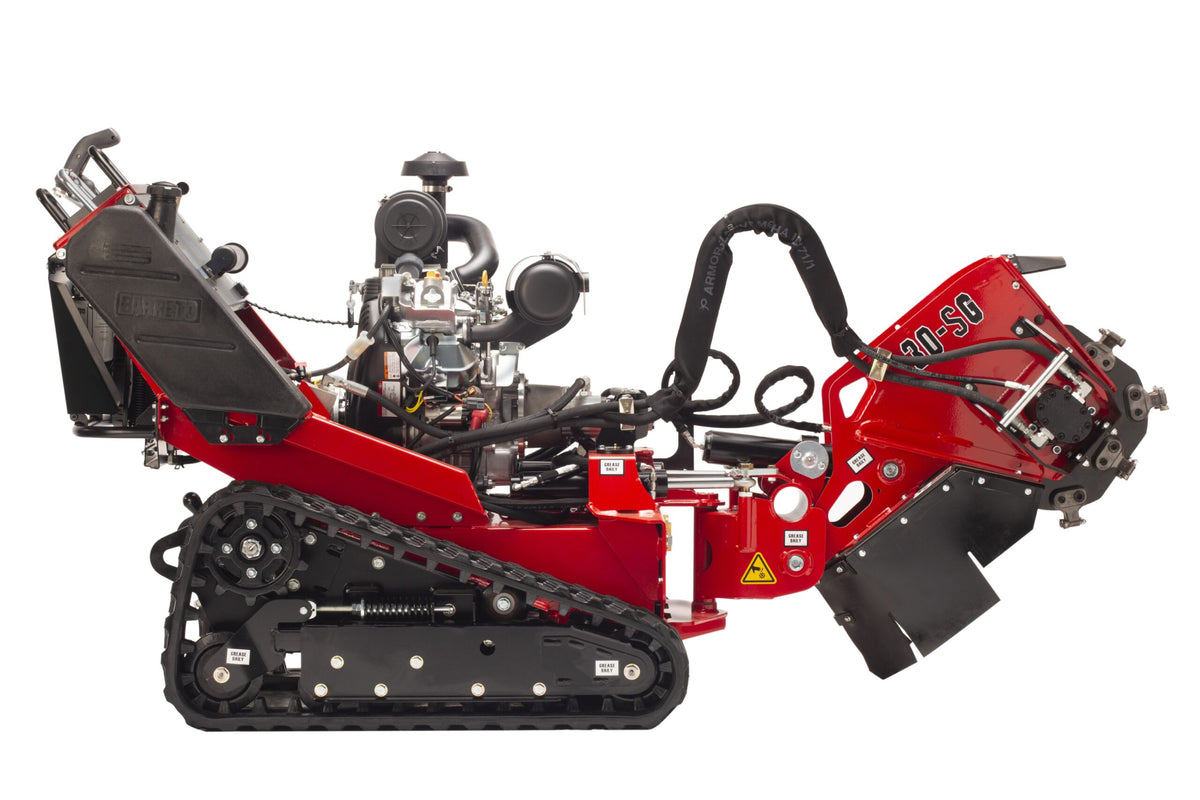

Stump Grinder/Cutter (Tracked) 30SG
Safety First
- Personal Protective Equipment (PPE): Always wear safety goggles, ear protection, gloves, and sturdy footwear.
- Check Surroundings: Ensure the area is clear of people, pets, and obstacles. Be aware of underground utilities.
Starting the Machine
- Inspect the Machine: Check for any visible damage or wear. Ensure all parts are secure.
- Fuel and Oil: Make sure the machine has enough fuel and oil. Check the hydraulic fluid level.
- Controls: Familiarize yourself with the controls. The Barreto 30SG has a control panel with various levers and switches.
-
Start the Engine: Follow the engine start-up procedure:
- Turn the fuel valve to the "ON" position.
- Set the choke lever to the "CHOKE" position if the engine is cold.
- Turn the ignition switch to the "START" position.
- Once the engine starts, gradually move the choke lever to the "RUN" position.
Operating the Stump Cutter
- Position the Machine: Move the machine to the stump. Use the track controls to maneuver it into place.
- Engage the Cutter Wheel: Lower the cutter wheel to the stump using the hydraulic lever.
-
Cutting the Stump:
- Start at the edge of the stump.
- Use the cutter wheel to grind away the stump in small, controlled passes.
- Move the cutter wheel side to side to remove the stump evenly.
- Continue grinding until the stump is below ground level.
Shutting Down
- Disengage the Cutter Wheel: Raise the cutter wheel using the hydraulic lever.
- Turn Off the Engine: Move the throttle lever to the "IDLE" position and turn the ignition switch to the "OFF" position.
- Clean Up: Clear away any debris and inspect the machine for any damage or wear.
Maintenance
- Daily Checks: Inspect the machine before and after each use. Check for loose or damaged parts.
- Lubrication: Grease the lubrication points as indicated in the manual.
- Hydraulic Fluid: Check and maintain the hydraulic fluid level.
For more detailed instructions, you can refer to the operator's manual.
Stay safe and happy stump grinding! If you have any other questions or need further assistance, feel free to ask.
SPECIFICATIONS
ENGINE:
Briggs & Stratton Vanguard V-Twin 31hp
Briggs & Stratton Vanguard V-Twin 31hp
DETAILS:
Height: 49.5″
Length (head to side): 79″
Length (head straight): 98″
Width: 35.5″
Weight: 1,700 lb.
Hydraulic Reservoir: 14 gallons
Hydraulic Flow to Head: 13.3gpm
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Ground Drive Forward: 290 ft/min
Ground Drive Reverse: 180 ft/min
Height: 49.5″
Length (head to side): 79″
Length (head straight): 98″
Width: 35.5″
Weight: 1,700 lb.
Hydraulic Reservoir: 14 gallons
Hydraulic Flow to Head: 13.3gpm
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Ground Drive Forward: 290 ft/min
Ground Drive Reverse: 180 ft/min
WHEEL SPECIFICATIONS
Cutting Wheel: 19.2″ diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12″
Cutting Height: 32″
Head Swing: 134˚, 99.7″ arc
Cutting Wheel: 19.2″ diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12″
Cutting Height: 32″
Head Swing: 134˚, 99.7″ arc
