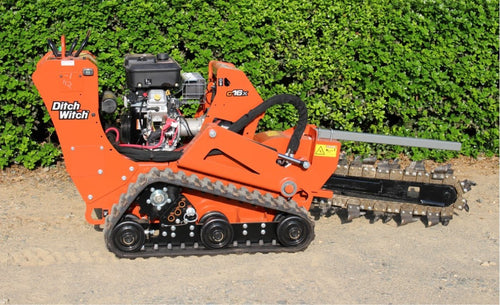

36" Walk-Behind Trencher (Tracked)

Ditch Witch


$200.00 USD - 1 Day (24 Hours)

Here are some basic instructions for operating the Ditch Witch C16X Walk-Behind Trencher:
  • Pre-Operation Checks:
    1. Ensure the trencher is on a flat, stable surface.
    2. Check fuel and oil levels.
    3. Inspect the digging chain and teeth for wear and damage.
    4. Make sure all safety guards are in place.
  • Starting the Trencher:
    1. Turn the fuel valve to the "ON" position.
    2. Set the choke lever to the "CHOKE" position if the engine is cold.
    3. Turn the ignition key to the "START" position until the engine starts.
    4. Once the engine is running, move the choke lever to the "RUN" position.
  • Operating the Trencher:
    1. Position yourself at the rear of the machine, behind the control console.
    2. Engage the digging chain by pulling the chain control lever.
    3. Use the throttle lever to adjust the engine speed.
    4. Slowly move the trencher forward using the drive control lever.
    5. Guide the trencher along the desired trench path, maintaining a steady speed.
  • Trenching Tips:
    1. Avoid making sharp turns while trenching.
    2. Keep an eye on the trench depth and width to ensure consistency.
    3. If the trencher encounters an obstacle, stop and remove it before continuing.
  • Shutting Down the Trencher:
    1. Disengage the digging chain by releasing the chain control lever.
    2. Move the throttle lever to the "IDLE" position.
    3. Turn the ignition key to the "OFF" position.
    4. Turn the fuel valve to the "OFF" position.
  • Post-Operation Checks:
    1. Clean the trencher to remove any dirt and debris.
    2. Inspect the digging chain and teeth for wear and damage.
    3. Check fuel and oil levels for the next use.
  • For more detailed instructions, you can refer to the operator's manual.
    If you have any other questions or need further assistance, feel free to ask!
Specifications
  • Engine: 16 hp (11.9 kW) Vanguard™
  • Fuel: Gasoline
  • Cooling: Air
  • Number of Cylinders: 2
  • Rated Speed: 3600 RPM
  • Fuel Consumption @ Rated Power: 1.33 GPH (5 LPH)
  • Trench Depth: Up to 36 inches (914.4 mm)
  • Trench Width: Up to 6 inches (152 mm)
  • Operating Weight: 1895 lbs (860 kg)
  • Dimensions:
    • Width: 35.8 inches (909 mm)
    • Length: Up to 94 inches (2.4 m)
    • Height (Transport): Up to 63 inches (1.6 m)
  • Travel Speed:
    • Forward: 120 ft/min (36.6 m/min)
    • Reverse: 120 ft/min (36.6 m/min)
  • Digging Chain Speed: 309 ft/min (94.2 m/min)
The C16X is designed for reliability and productivity, making it ideal for tight spaces and efficient pipe and cable installation.
